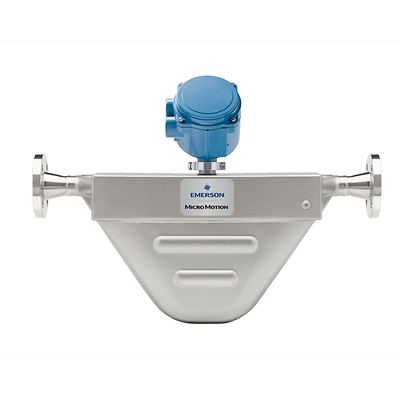

Micro Motion F100H Coriolis Meter, 1 Inch (DN25),Nickel Alloy C22

Konfiguruj

Oblicz wielkość linii

Dowiedz się więcej

DODAJ DO OBSZARU ROBOCZEGO

Product Description

A Nickel Alloy C22, Coriolis flow meter that delivers highly reliable, repeatable and robust measurement.

Dane techniczne

Mass flow accuracy (Liquid): ±0.20% of rate (standard)±0.15% of rate (optional)±0.10% of rate (optional)

Mass flow repeatability (Liquid): ±0.050% of rate

Volume flow accuracy (Liquid): ±0.20% of rate (standard)±0.15% of rate (optional)±0.10% of rate (optional)

Volume flow repeatability (Liquid): ±0.050% of rate

Mass flow accuracy (Gas): ±0.5% of rate

Mass flow repeatability (Gas): ±0.25% of rate

Density accuracy (Liquid): ±0.002 g/cm³ (2.0 kg/m³) (standard)±0.001 g/cm³ (1.0 kg/m³) (standard)

Temperature accuracy: ±1 °C ±0.5% of reading

Sensor maximum working pressure: 2,160 psig (149 barg)

Meter approvals, calibrations, and certifications: •UL
•CSA
•IECEx
•NEPSI
•ATEX
•Ingress Protection
•EMC effects

Charakterystyka

Achieve highly accurate mass volume flow and density measurement in applications that require a compact, drainable design
Choose from 316L Stainless Steel and C-22 nickel alloy in all sizes
Improve measurement and tracking with extensive process and meter diagnostics with on-board historian and logging
Broad range of meter approvals and certifications, including; CSA (Class 1 Div 1 groups C and D, Class 1 Div 2 groups A, B, C and D), ATEX, IECEx, Ingress Protection 66/67, and NAMUR
Custody Transfer Approvals from MID OIML R 117, National Type Evaluation Program (NTEP), Measurement Canada, and INMETRO Brazil
Realize the fastest response rates and accurate batch and process measurement with unmatched MVD transmitter technology
Gain real-time and in-process measurement integrity assurance with Smart Meter Verification
Interact with our 3D model to learn more about our F-Series Coriolis Flow and Density Meters
